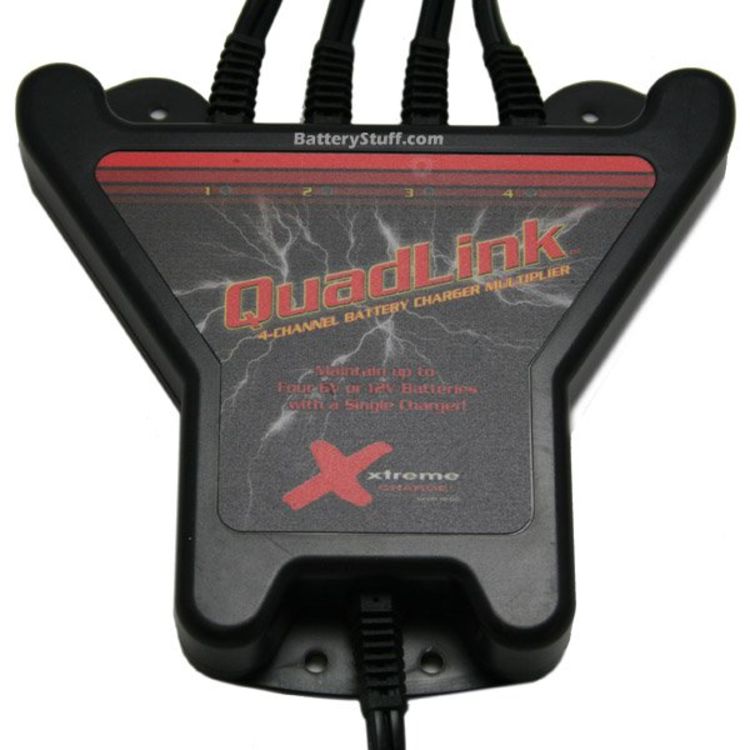

PulseTech Quadlink 4 Channel Battery Charger Multiplier

Quadlink 4 Channel - The PulseTech Quadlink 4 Channel Battery Charger Multiplier turns any brand 6V or 12V DC battery charger into a 4-station maintenance charger, automatically splitting and distributing all of the charger’s capabilities into 10-minute sequencing charge segments. Depending on the charger’s capability, QuadLink can distribute charges simultaneously to up to four AGM, gel-cell, VRLA inducing or deep cycle for marine, standard automobile and truck and even small motorcycle batteries. The QuadLink works with ANY 6V or 12V battery, regardless of size of CCA rating. The four-way switcher is capable of charging the batteries whether they are individually connected or connected as a group in a 24, 36 or 48 volt series.

With the QuadLink there’s no longer a reason to use multiple chargers on vehicles or batteries in storage. Since most maintenance chargers are in float mode 95% of the time, QuadLink’s unique ability to switch back and forth between batteries allows a single maintenance charger the ability to charge and maintain up to four batteries. It’s a simple plug and play application with a microprocessor that automatically adapts to the number of batteries actually connected. Almost transparent to the battery, the QuadLink does not add to the charging capabilities of the charger it is connected to, but simply multiplexes the charger’s application to up to four batteries at one time. The particular capabilities of the charger are simply being passed through to the batteries via the QuadLink so the charger is always in full control of the charging process.

Ideally suited for the PulseTech XC100-P, or X2 charger/desulfators, but will work with any maintenance/floating charger under 8 amps. Note the 2 pin offset connectors on input/output. Comes with four ring terminal harnesses.
