UV5RA Police Scanner
UV5RA Police Scanner
Couldn't load pickup availability
Police Walkie Talkie Scanner Radio Vhf Uhf Two Way radio communicator for Baofeng ham radio
Features:
1 Dual-band handheld transceiver with display function menu on the display "LCD".
2 DTMF encoded.
3 Lithium-ion battery with high capacity.
4 Commercial FM radio receiver(65MHz ~ 108MHz).
5 Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.
6 Function "VOX"(voice operated transmission).
7 Alarm function.
8 Up to 128 memory channels.
9 Broadband (Wide)/Narrowband(Narrow),selectable.
10 High power/ low (4W/1W) selectable.
11 Display illumination and programmable keyboard.
12 Function "beep" on the keyboard.
13 Dual Watch/dual reception.
14 Selectable Frequency Step 2.5/5/6.25/10/12.5/25kHz.
15 Function "OFFSET"(frequency offset for repeater access).
16 Battery saving function "SAVE".
17 Timer transmission "TOT" programmable.
18 Selecting the Scan Mode.
19 Function Busy Channel Lock "BCLO".
20 Built-in RX CTCSS/DCS scan.
21 Built-in LED flashlight.
22 Programmable by PC.
Specifications:
|
General |
|
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-520HZ (TX/RX) |
|
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain DualBand antenna |
|
Antenna Impedance |
50Ω |
|
Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Dimension(W x H x D) |
100 x 52 x 32 mm |
|
Weight |
250g(including battery, antenna) |
|
Transmitter |
|
|
Output power |
4W / 1W (Max 5W) |
|
Modulation Mode |
16kΦF3E / 11kΦF3E |
|
Maximum deviation |
<5kHz(Wide) / <2.5kHz(Narrow) |
|
Spurious Radiation |
<7μW |
|
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
≤1.6A(5W) |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
<10% |

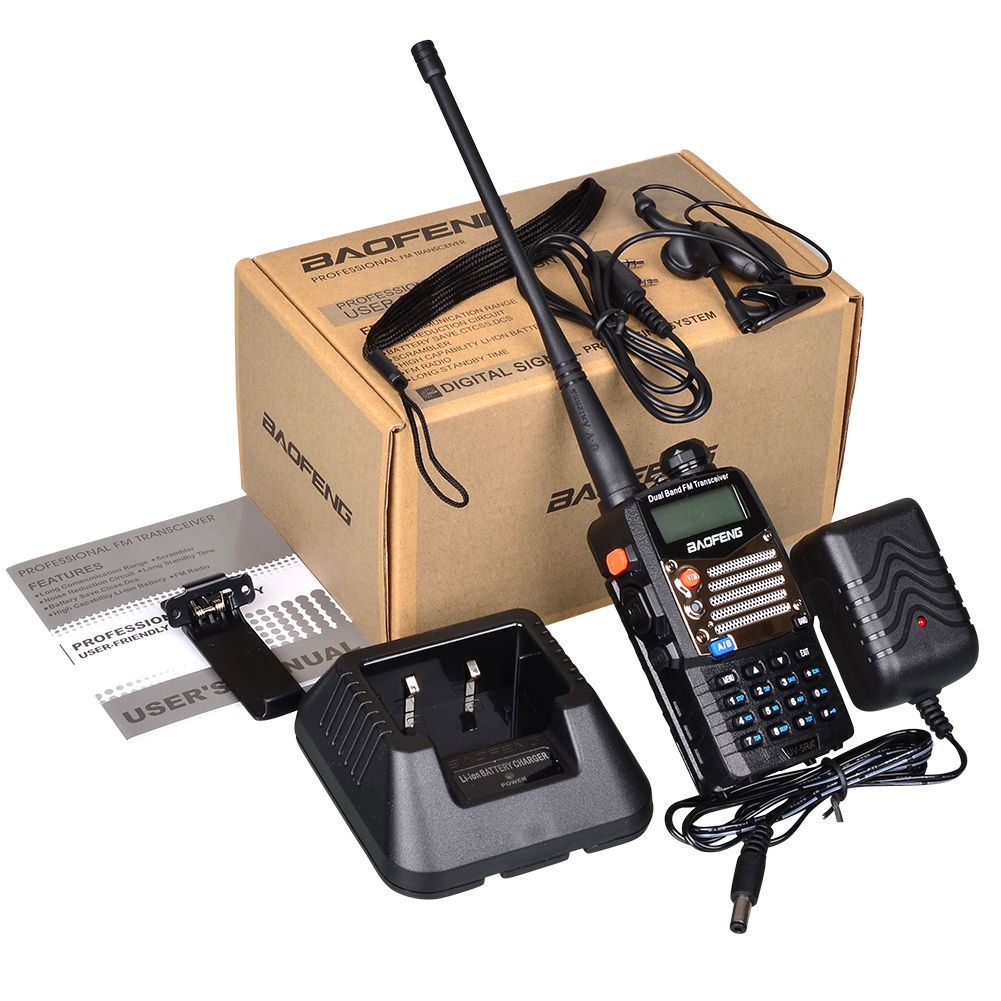

Package:
1 x walkie talkie VHF136-174Mhz UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Dual Band SMA-Female Long Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V European Plug/US Plug AU/UK/ZA adaptors all available)
1 x PTT Earpiece for free as the gift
1 x Retail box
